Shredder

Single Shaft Shredder

The WT series single shaft shredder is suitable for recycling wide range of materials. It ···

Min.Order Quantity:

1 Piece/Pieces

Port:

Shenyang

Product Details

The WT series single shaft shredder is suitable for recycling wide range of materials. It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials. As per our customers’ requirements, such as the input size of the material, capacity and the final output size etc, we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming.

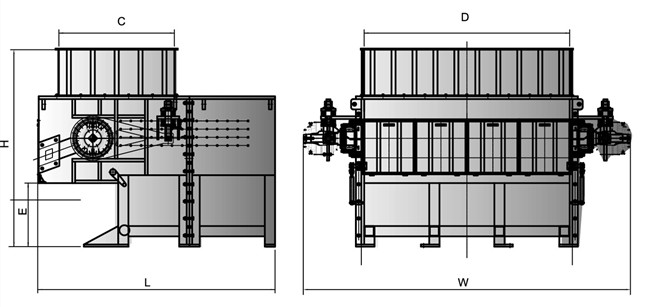

Item       Model


WT2260


WT3080

Dimension L/W/H(mm)


1840 X 1379 X 1754


2500 X 1712 X 1700

Cutting Chamber C/D(mm)


937 X 682


1200×800

Height of discharge port H(mm)


546


500

Cylinder Stroke (mm)


500


750

Rotor Diameter (mm)


φ224.7


φ300

Main Shaft Speed (r/min)


83


83

Screen Mesh (mm)


φ25


φ40

Rotor-knives(pcs)


32


46

Stator-knives (pcs)


2+2


2

Main Motor Power (kw)


18.5


30

Hydraulic Motor Power (kw)


2.2


2.2

Weight (kg)


1600


2600

MEDIUM SHINGLE SHAFT SHREDDER

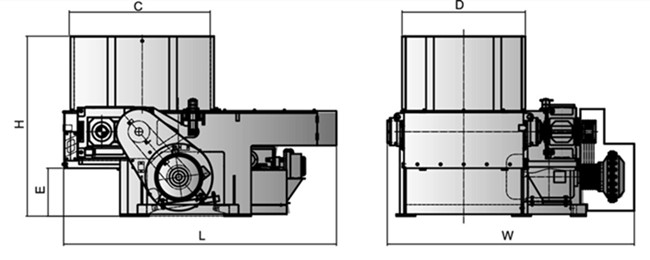

Item       Model

WT4080

WT40100

WT40120

WT40150

Dimension L/W/H(mm)

2838 x 1779 x 1875

2838 x 2036 x 1880

2843 x 2564 x 1975

2825 x 2886 x 2103

Cutting Chamber C/D(mm)

1410×800

1410×1000

1410×1200

1410×1500

Height of discharge port E(mm)

500

500

500

560

Cylinder Stroke (mm)

900

900

900

900

Rotor Diameter (mm)

φ390.9

φ390.3

φ390.3

φ390.3

Main Shaft Speed (r/min)

74

74

74

74

Screen Mesh (mm)

φ40

φ40

φ40

φ40

Rotor-knives(pcs)

42+4

54+4

66+4

90+4

Stator-knives (pcs)

2

2

2

3

Main Motor Power (kw)

37

45

55

75

Hydraulic Motor Power (kw)

2.2

2.2

5.5

5.5

Weight (kg)

3500

4000

5400

6200


Item       Model

WT48150

WT48200

WT48250

Dimension L/W/H(mm)

3135×2968×2105

3255×4415×2720

3255×4615×2720

Cutting Chamber C/D(mm)

1650×1500

1450×2000

1560×2500

Height of discharge port E(mm)

600

950

950

Cylinder Stroke (mm)

1000

950

950

Rotor Diameter (mm)

φ464.8

φ464.8

φ464.8

Main Shaft Speed (r/min)

74

74

74

Screen Mesh (mm)

φ40

φ40

φ40

Rotor-knives(pcs)

90+4

114+4

144+4

Stator-knives (pcs)

3

4

5

Main Motor Power (kw)

90

75+75

90+9

Hydraulic Motor Power (kw)

5.5

7.5

7.5

Weight (kg)

7800

10000

12000

HEAVY-DUTY SINGLE SHAFT SHREDDER


Item       Model

WT66150

WT66200

WT66250

WT66300

WT66400

Dimension L/W/H(mm)

4100×3450×3000

4100×3950×3000

4100×4450×3000

4100×6800×3000

4100×6800×3000

Cutting Chamber C/D(mm)

1885×1500

1885×2000

1885×2500

1855×3000

1855×4000

Height of discharge port E(mm)

1020

1020

1020

1020

1020

Cylinder Stroke (mm)

1000

1000

1000

1000

1000

Rotor Diameter (mm)

φ660

φ660

φ660

φ660

φ660

Main Shaft Speed (r/min)

75

75

75

75

75

Screen Mesh (mm)

φ40

φ40

φ40

φ40

φ40

Rotor-knives(pcs)

126+4

158+4

225+4

291+4

363+4

Stator-knives (pcs)

3

4

5

6

8

Main Motor Power (kw)

75+75

90+90

110+110

132+132

160+160

Hydraulic Motor Power (kw)

11

11

11

11

11

Weight (kg)

12100

12500

14200

15500

17500
